PVC Casement / Awning Windows

Groupe Atlanta

Features

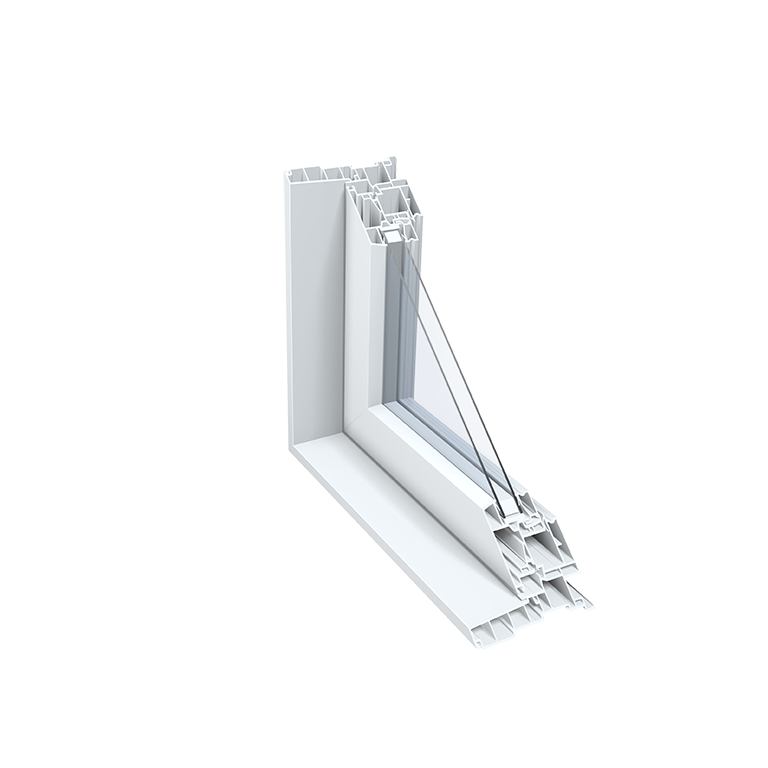

  • Multi-chamber heavy-duty profiles for strength and energy performance
  • Fully welded rigid PVC sash with double-glazed sealed units
  • 90° opening casement for easy cleaning
  • Triple weather-strip system for better insulation
  • 3-point locking system
  • Manual operator and security locks
  • Full and half interior screen compatibility
  • Large hardware cavity
  • ENERGY STAR compliant
  • Exclusive 20-year warranty

Options

  • Accessories and options for any type of window
  • Various trims and accessories
  • Rigid PVC brickmolds
  • Interior dry wall returns
  • Head extender/ sill angle
Online Brochure

Groupe Atlanta

All PVC

DESIGNED FOR PERFORMANCE & DURABILITY

Sturdy multi-chamber profiles, ensuring an exceptionally solid, energy-efficient window.

Online Brochure

FRAMES

  • CASEMENT WINDOW

    AESTHETICS, COMFORT AND SECURITY.

    High air tightness and water resistance
    Relatively efficient use of space
    Open fully

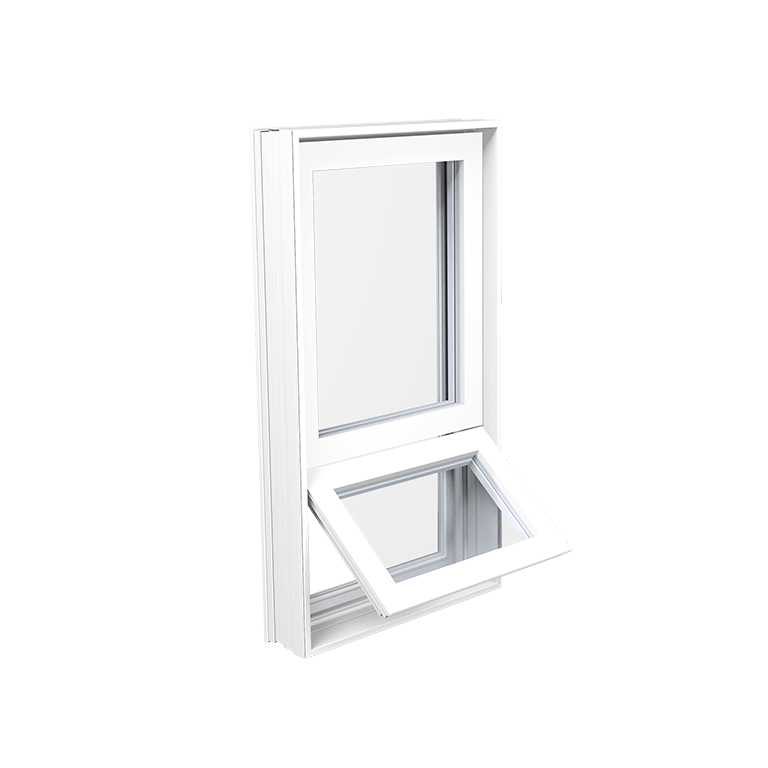

  • AWNING WINDOW

    SPECIALLY DESIGNED TO MEET MARKET TRENDS, USER NEEDS.

    No exterior clearance required
    Excellent ventilation
    High air tightness
    Large opening area possible
    Cleaning effected from interior

  • HUNG WINDOW

    INNOVATION AND DESIGN.

    Indirect ventilation
    Relatively efficient use of space

  • FIXED WINDOW

    OPTIMAL SEALING.

    High air tightness and water resistance
    No hardware
    Low cost
    Excellent visibility

  • SLIDING WINDOW

    EXCELLENT QUALITY / PRICE RATIO

    Indirect ventilation
    Relatively efficient use of space
    Less costly
Button label

SPECIFICATIONS

Performance Table

Window Models and Specifications
Models Rating Size Air Tightness Water Resistance (Pa) Wind-Load Resistance (Pa) Forced Entry Standards
Fixed CW-PG100-FW
(72" x 72")		 A1 A2 A3 140 - 730 720 - 4800 F10 F20 NAFS-AAMA/WDMA/CSA
101/I.S.2/A440-11
Casement CW-PG100-C
(32" x 63")		 A1 A2 A3 140 - 730 720 - 4800 F10 F20 NAFS-AAMA/WDMA/CSA
101/I.S.2/A440-11
Awning CW-PG50-AP
(62" x 48")		 A1 A2 A3 140 - 730 720 - 2400 F10 F20 NAFS-AAMA/WDMA/CSA
101/I.S.2/A440-11
Single Hung R-PG85-H
(39" x 63")		 A1 A2 A3 140 - 720 720 - 4080 F10 F20 NAFS-AAMA/WDMA/CSA
101/I.S.2/A440-11
Single Slider R-PG60-HS
(63" x 43")		 A1 A2 A3 140 - 620 720 - 2880 F10 F20 NAFS-AAMA/WDMA/CSA
101/I.S.2/A440-11
Aluminum Interior Opening CW-PG100-DAW
(48" x 71")		 A1 A2 A3 140 - 730 720 - 4800 F10 F20 NAFS-AAMA/WDMA/CSA
101/I.S.2/A440-11

Compare Aluminum & PVC

"Aluminum and PVC" Windows
Features and Benefits Casement / Awning / Fixed Single Slider Single Hung
ALUMINUM exterior & PVC interior ✓ ✓ ✓
ALUMINUM exterior & interior ✓
Aluminum frame profiles mechanically fastened with steel screws through integrated grooves for maximum strength ✓ ✓ ✓
Aluminum sash profiles assembled with adjustable corner keys for a perfect fit and finish ✓ ✓ ✓
Sealed double or triple energy-efficient glass unit for greater comfort ✓ ✓ ✓
Different mullion combination (structural or modular) ✓ ✓ ✓
High range of hardware available ✓ ✓ ✓
Robust aluminum screen ✓ ✓ ✓
Fusion welded vinyl profile window thermal insulation system, contributing to maximum protection against air and water infiltration ✓ ✓ ✓
Opening option from the inside ✓
"All PVC" Windows
Features and Benefits Casement / Awning / Fixed Single Slider Single Hung
Rigid welded PVC frame with or without integrated finishing moulding. ✓ ✓ ✓
Fusion welded PVC rigid sash providing superior strength and durability. ✓ ✓ ✓
Interior panel in the insulated portion of the divider, near natural air convection. ✓ ✓ ✓
Panel opens 90˚ for simpler and faster cleaning. ✓ ✓
Triple weather-stripping for maximum protection against wind, air, and water. ✓ ✓ ✓
Sealed double or triple energy-efficient glass unit for greater comfort. ✓ ✓ ✓
Wide choice of options for interior and exterior finishing. ✓ ✓ ✓
Tandem caster panels to facilitate sliding. ✓
Central latch with secure cam. ✓ ✓
Lifting handle built into panel. ✓ ✓
