Our leading PVC patio door

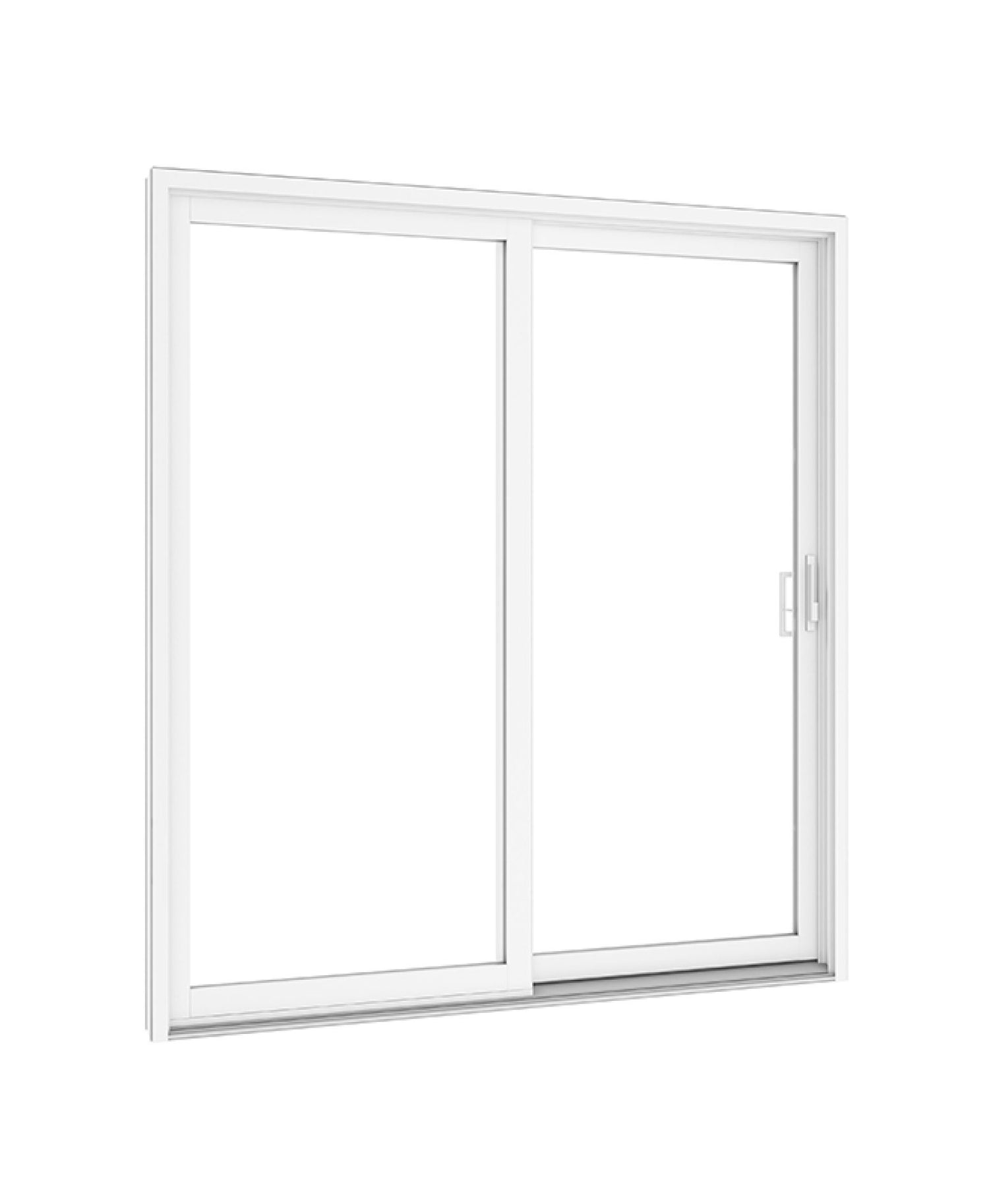

With its simple, clean profile and elegant handle, the 550 door offers a modern look that blends in with your décor. Thanks to the light provided by its large glass surface, it will make you appreciate your living space even more, inside and out.

The 550 is a quality door at a good price.

Online Brochure

Novatech

Combine aesthetics and performance with our 630 patio door. Its double or triple sealed units provide superior energy efficiency and an unmatched level of comfort.

Online Brochure

Technical Details

Characteristics

Our leading PVC patio door

With its simple, clean profile and elegant handle, the 550 door offers a modern look that blends in with your décor. Thanks to the light provided by its large glass surface, it will make you appreciate your living space even more, inside and out.

The 550 is a quality door at a good price.

Construction

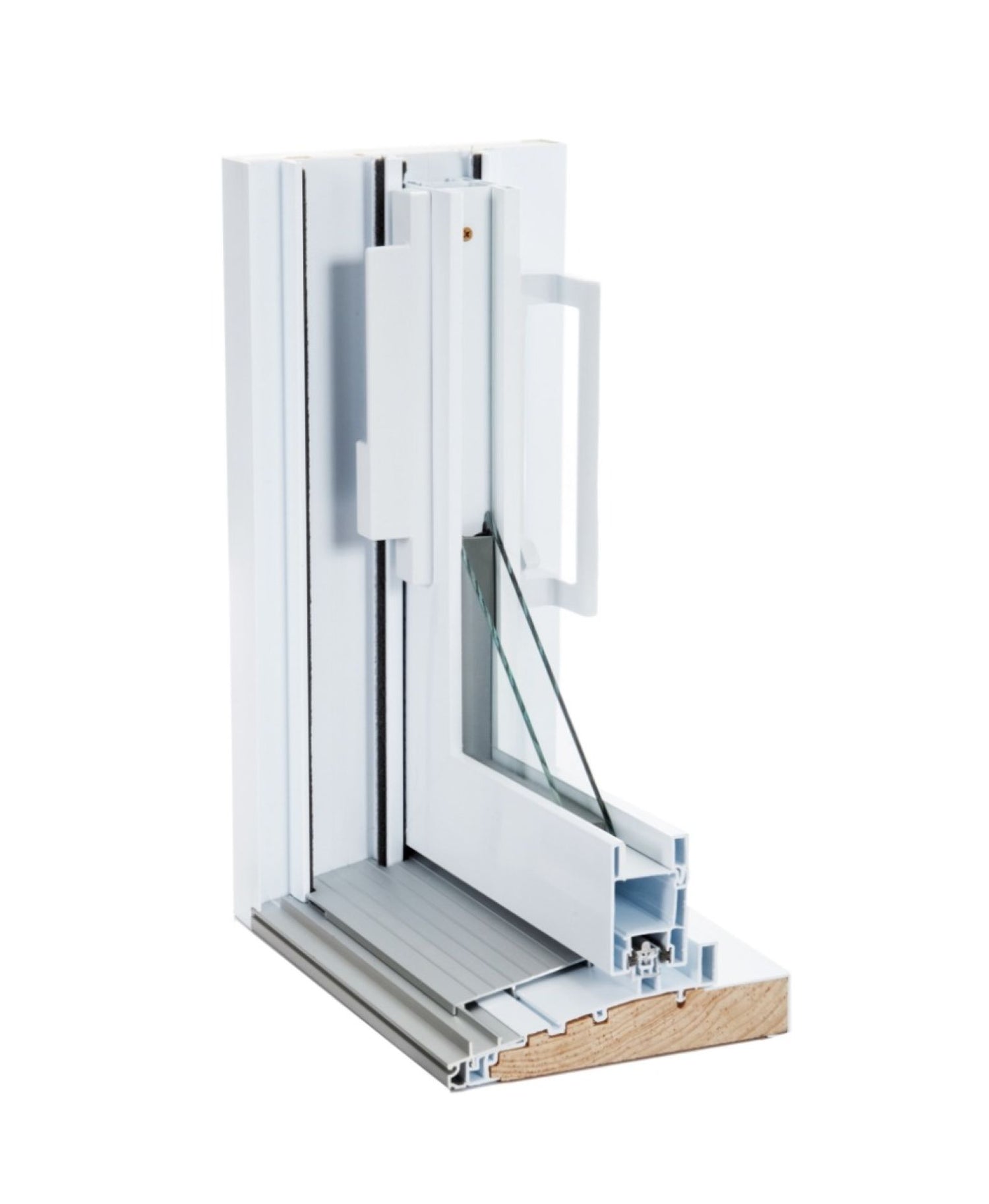

The 550 patio door is made of a wood frame (A) covered with PVC (B). It is equipped with a quick-drain sill (C) and an anodized aluminum sill (D). Its sashes are welded and steel reinforced for better stability and structural integrity.

Construction550

Color

Our patio doors can be painted in more than 100 colors, do not hesitate to ask your dealer for a specific color your dealer for a specific color (option). Three basic colors are offered, blue white, cream white and black (optional).

Dimensions

Dimensions

Available sizes and dimensions, exterior view.
X = Opening panel O = Fixed panel

5'

5 pieds

59 ½" x 79 ½"
58 ½" x 81"
59 ½" x 95 ½"

6'

6 pieds

71 ½" x 79 ½"
70 ½" x 81"
71 ½" x 95 ½"

7' & 8'

8 pieds

 82 ½" × 81"
83 ½" × 95 ½"
95 ½" × 79 ½"
94 ½" × 81"
95 ½" × 95 ½"

9' & 12'

9 pieds

105" x 79 ½"
103 7/16" x 81"
139 ⅜" × 81"

9' & 12'

9 & 12 pieds

 107 3/16" × 79 ½" ( OXO )
107 3/8" × 79 ½" ( XOO ou OOX )
105 5/8" × 81" ( OXO )
105 13/16" × 81" ( XOO ou OOX )
141 5/8" × 81" ( OXO )
141 7/8" × 81" ( XOO ou OOX )

10' & 12'

10 & 12 pieds

116 7/16" x 79 ½"
114 ½" x 81"
116 7/16" × 95 ½"
140 1/2" × 79 ½"
138 7/16" x 81"
140 1/2" × 95 ½"

Frame depth: 5¾'' ou 7¼''

Hardware

Hardware

Poignée View

Look Handle — Standard

A sleek contemporary style handle that blends into any décor.

Keyed lock option available

White

Poignée View

View Handle — Option

An elegant handle well suited for wide doors with 8 foot height.

Keyed lock option available

White

Black exterior / White interior

Oil Rubbed Bronze (paint)

Satin Nickel

Options

Integrated Blinds

Integrated blinds are a great way to let light in during the day while ensuring absolute privacy at any moment. Easy to operate with two discreet buttons. Because the blinds are between the glass, they are virtually maintenance free. Available in two colors.

White

Satin Grey


Grills

Flat/Rectangular 2" dividers,
1 × 3 squares.

Flat/Rectangular 5/8" grills,
3 × 6 squares.

Flat/Rectangular 5/8" or 1" hanging grills,
3 × 1 squares.



Sidelites and Transoms

A wide selection of sidelite and transom configurations is available in custom sizes. With an all PVC construction, our patio door sidelites are highly durable and offer great performance.


Other options

  • PVC Interior jamb pocket cover
  • Low-E glazing with argon
  • Triple glazing
  • Tinted glass (bronze or gray)
  • Keyed lock & keyed alike
  • Foot lock
  • Security bar
  • Twin point lock (Zinc or stainless steel)
  • Reinforced screen
  • Interior jamb extensions, PVC clad wood, on 3 or 4 sides
  • Aluminum sill extension
  • Brick mould with aluminum sill extension
  • Drywall return
  • Nailing fin

Energy Star Details

Insulated glass: Double - Low E face 3

Energy rating: RE 34

Water resistance: 400 PA

Air infiltration resistance: A3

Global: PG-R45

Tests done with a 71½'' x 81'' door.
