ALUMINIUM SLIDER WINDOWS

Groupe Atlanta

FEATURES

  • Sturdy 100% aluminium frame with insulated PVC thermal break
  • 4-sash slider
  • Aluminium screen installed between glass panes
  • Baked enamel finish
  • Thermal windows on the exterior
  • Single-glazed sash on the interior with 3 mm glass window
  • Sashes and screens travel on nylon glides for a smooth operation
  • Mullion assembly ensuring strength, rigidity and increased luminosity
  • Continuous triple weather-strip system for better insulation
  • 3-point locking system
  • Interior screen compatibility
  • ENERGY STAR compliant

OPTIONS

  • Choices of colours, in both standard and custom sizes
  • Decorative grids
  • Triple glazed window
  • Thermo or regular glass
  • Low-E with argon gas and INEX spacer
Online Brochure

Groupe Atlanta

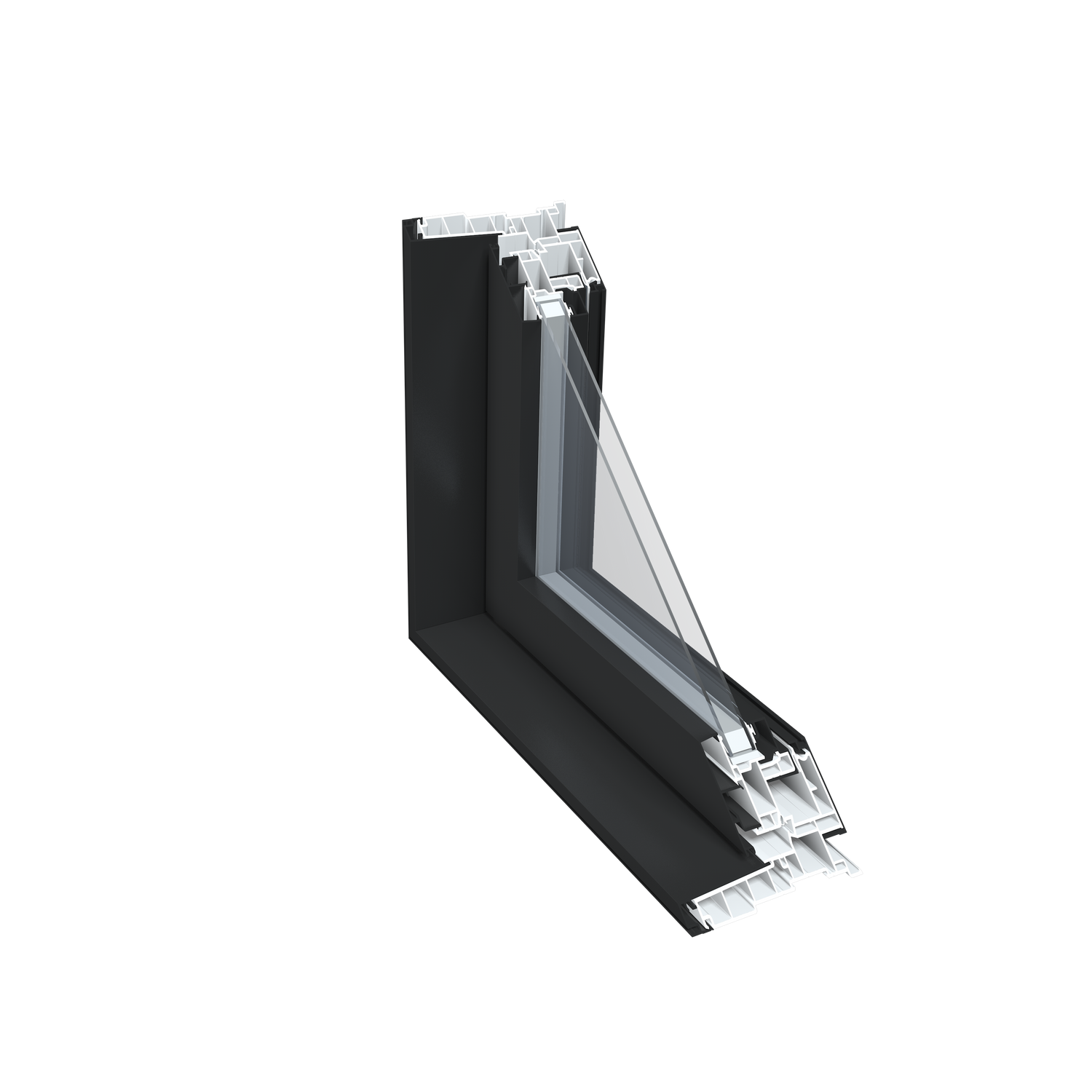

ALUMINUM 2 SIDES

2 SIDES - OUTDOOR & INDOOR ALUMINUM

Durability of the Aluminum & Energy Efficiency of the PVC.

Online Brochure

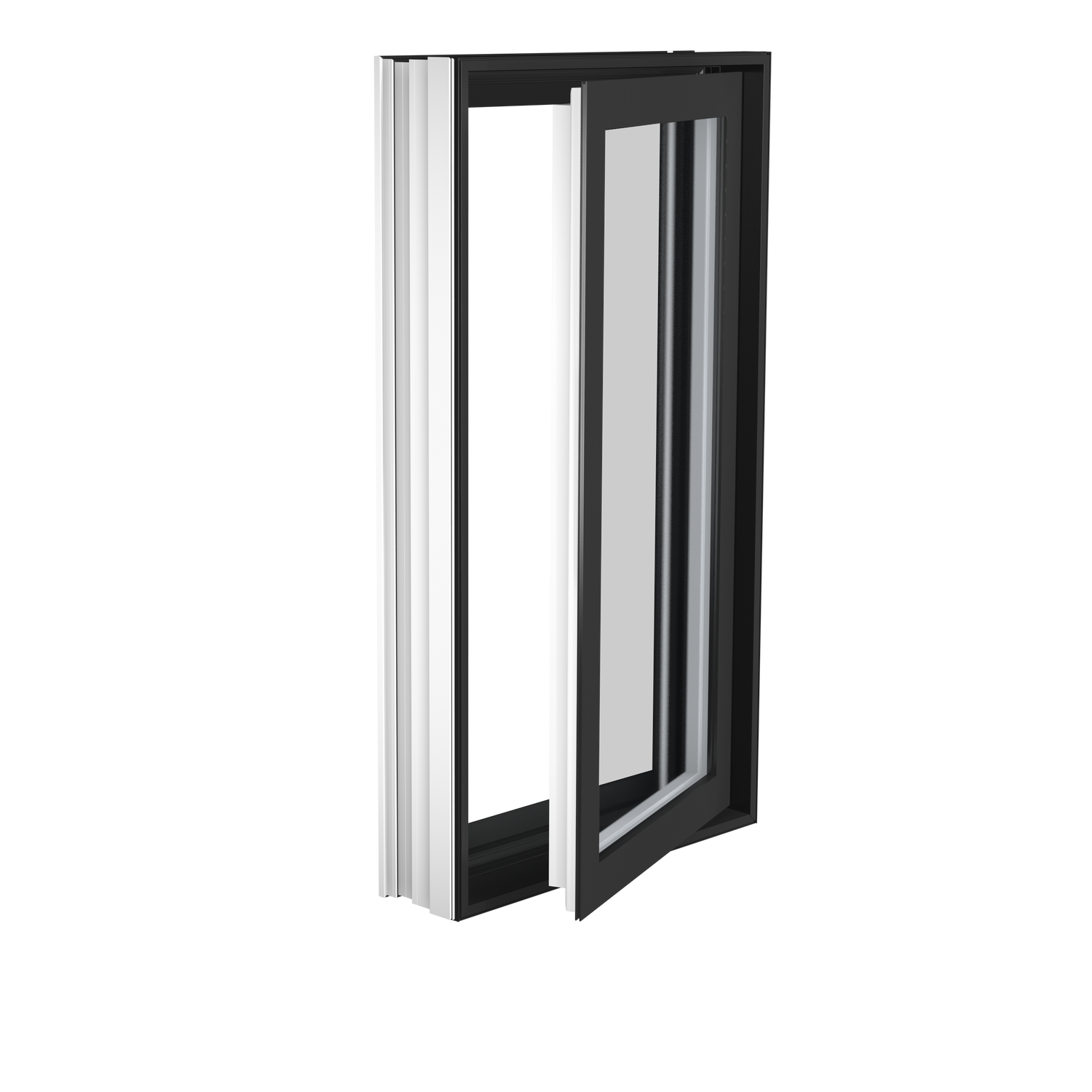

  • CASEMENT WINDOW

    AESTHETICS, COMFORT AND SECURITY.

    High air tightness and water resistance
    Relatively efficient use of space
    Open fully

  • AWNING WINDOW

    SPECIALLY DESIGNED TO MEET MARKET TRENDS, USER NEEDS.

    No exterior clearance required
    Excellent ventilation
    High air tightness
    Large opening area possible
    Cleaning effected from interior

  • HUNG WINDOW

    INNOVATION AND DESIGN.

    Indirect ventilation
    Relatively efficient use of space

  • FIXED WINDOW

    OPTIMAL SEALING.

    High air tightness and water resistance
    No hardware
    Low cost
    Excellent visibility

  • SLIDING WINDOW

    EXCELLENT QUALITY / PRICE RATIO

    Indirect ventilation
    Relatively efficient use of space
    Less costly

SPECIFICATIONS

Performance Table

Window Models and Specifications
Models Rating Size Air Tightness Water Resistance (Pa) Wind-Load Resistance (Pa) Forced Entry Standards
Fixed CW-PG100-FW
(72" x 72")
A1 A2 A3 140 - 730 720 - 4800 F10 F20 NAFS-AAMA/WDMA/CSA
101/I.S.2/A440-11
Casement CW-PG100-C
(32" x 63")
A1 A2 A3 140 - 730 720 - 4800 F10 F20 NAFS-AAMA/WDMA/CSA
101/I.S.2/A440-11
Awning CW-PG50-AP
(62" x 48")
A1 A2 A3 140 - 730 720 - 2400 F10 F20 NAFS-AAMA/WDMA/CSA
101/I.S.2/A440-11
Single Hung R-PG85-H
(39" x 63")
A1 A2 A3 140 - 720 720 - 4080 F10 F20 NAFS-AAMA/WDMA/CSA
101/I.S.2/A440-11
Single Slider R-PG60-HS
(63" x 43")
A1 A2 A3 140 - 620 720 - 2880 F10 F20 NAFS-AAMA/WDMA/CSA
101/I.S.2/A440-11
Aluminum Interior Opening CW-PG100-DAW
(48" x 71")
A1 A2 A3 140 - 730 720 - 4800 F10 F20 NAFS-AAMA/WDMA/CSA
101/I.S.2/A440-11

Compare Aluminum & PVC

"Aluminum and PVC" Windows
Features and Benefits Casement / Awning / Fixed Single Slider Single Hung
ALUMINUM exterior & PVC interior
ALUMINUM exterior & interior
Aluminum frame profiles mechanically fastened with steel screws through integrated grooves for maximum strength
Aluminum sash profiles assembled with adjustable corner keys for a perfect fit and finish
Sealed double or triple energy-efficient glass unit for greater comfort
Different mullion combination (structural or modular)
High range of hardware available
Robust aluminum screen
Fusion welded vinyl profile window thermal insulation system, contributing to maximum protection against air and water infiltration
Opening option from the inside
"All PVC" Windows
Features and Benefits Casement / Awning / Fixed Single Slider Single Hung
Rigid welded PVC frame with or without integrated finishing moulding.
Fusion welded PVC rigid sash providing superior strength and durability.
Interior panel in the insulated portion of the divider, near natural air convection.
Panel opens 90˚ for simpler and faster cleaning.
Triple weather-stripping for maximum protection against wind, air, and water.
Sealed double or triple energy-efficient glass unit for greater comfort.
Wide choice of options for interior and exterior finishing.
Tandem caster panels to facilitate sliding.
Central latch with secure cam.
Lifting handle built into panel.
